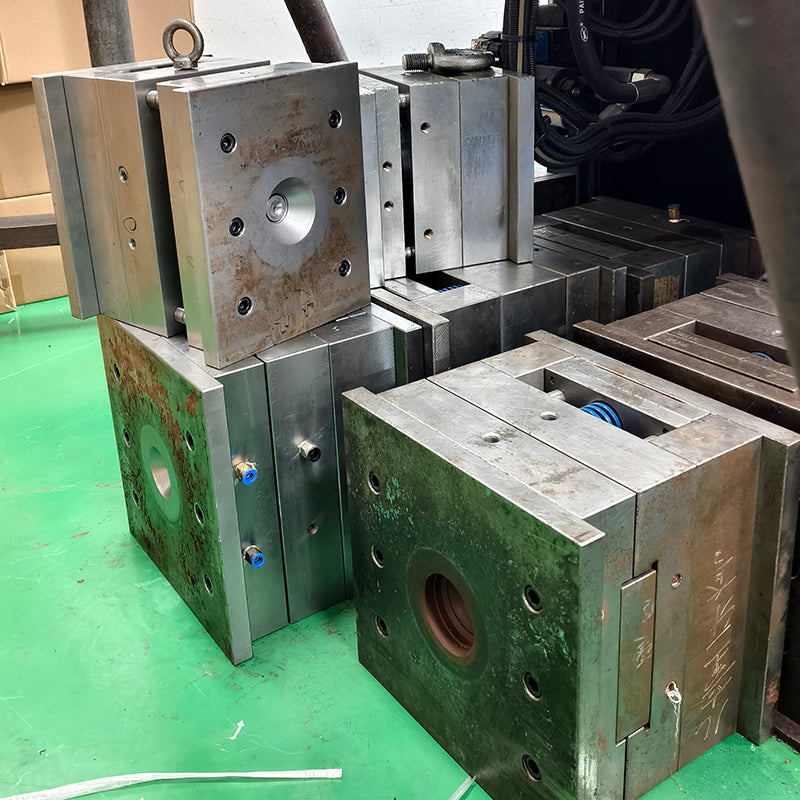

In the world of low-volume manufacturing and rapid prototyping, desktop injection molding machines are game-changers. They offer unprecedented agility and cost-effectiveness for producing plastic parts in-house. However, the bridge between a great idea and a great part is the mold. A poorly designed mold can lead to catastrophic failures, defective parts, and massive financial losses—easily running into hundreds of thousands of dollars when you account for scrapped parts, machine downtime, and redesign costs.
The key to success lies in designing molds specifically for the unique constraints and advantages of desktop machines. Here are the 10 critical mold design points you must get right to avoid a million-dollar disaster.
1. The Parting Line is Prime
The parting line is where the two halves of the mold meet. Its placement is the first and most crucial decision.
· Why it matters: A poorly chosen parting line can cause flash (excess plastic seeping out), make the part impossible to eject, or create incredibly complex and expensive mold mechanics.
· Desktop Tip: For smaller machines, keep the parting line simple and flat if possible. Complex angled parting lines require higher precision and can be harder to maintain on smaller platens. Always place it where it won't be visible on the final product.
2. Draft Angles Are Non-Negotiable
Draft is the slight angle applied to the vertical faces of a part.
· Why it matters: Without draft, the part will grip the mold walls with immense force during ejection. This leads to torn parts, extended cycle times, and severe mold wear. In the worst case, the part cannot be ejected at all.
· Desktop Tip: The limited ejection force of desktop machines makes draft even more critical. A minimum of 1-3 degrees of draft is essential. Textured surfaces require even more (add 1-2 degrees per 0.001" of texture depth).
3. Wall Thickness: uniformity is king
Maintaining a consistent and appropriate wall thickness is paramount.
· Why it matters: Variations cause sinks (surface depressions), warpage, and internal stresses as the plastic cools at different rates. Thick sections are a primary cause of defects.
· Desktop Tip: Desktop machines have lower injection pressure. Excessively thick walls are harder to fill and pack properly, leading to short shots or voids. Excessively thin walls exceed the machine's capability. Aim for uniform walls between 1-3mm for most materials.
4. Smart Gate Location
The gate is the entrance through which molten plastic enters the mold cavity.
· Why it matters: The gate location dictates flow path, weld lines (where molten flows meet), and the orientation of fibers in filled materials. A bad gate location creates weak points and visual defects.
· Desktop Tip: For small parts, pin gates (small, easily sheared points) are ideal. Manually trimmed tab or edge gates are also common. Position the gate at the thickest section to allow for proper packing and to minimize visible gate vestige.
5. Don't Underestimate Ejection
Getting the part out of the mold is just as important as getting it in.
· Why it matters: Insufficient or poorly placed ejector pins will distort the part, leave visible marks, or simply fail.
· Desktop Tip: The ejection force on desktop machines is limited. Plan your ejection strategy carefully. Use enough ejector pins distributed evenly under bosses or ribs. Consider sleeve ejectors for bosses and blade ejectors for ribs. Polish all ejection components to reduce friction.
6. Venting Trapped Air
Vents are small channels cut into the parting line that allow air to escape the cavity as plastic flows in.
· Why it matters: Trapped air compresses, burns the plastic, and prevents the cavity from filling completely, resulting in a "short shot" or burn marks.
· Desktop Tip: The high injection speeds on some desktop machines make venting critical. Vents should be shallow (typically ~0.02mm or .001") to prevent plastic leakage. Proper venting is often the difference between a good part and a scrap part.
7. Coring Out: The Power of Ribs and Bosses
Instead of making a part thick, use ribs and bosses to add strength and facilitate assembly.
· Why it matters: This maintains rigidity while avoiding thick sections that cause sinks and warpage.
· Desktop Tip: The rule of thumb is that a rib should be 50-60% of the adjacent wall's thickness. This prevents sink on the opposite side. Bosses used for screws should be coring out to the root diameter to avoid sinks.
8. Material Shrinkage Must Be Accounted For
Plastic shrinks as it cools. The mold must be oversized to compensate for this precise amount.
· Why it matters: Ignoring shrinkage means your final part will be the wrong size. Different materials shrink at different rates (e.g., Nylon shrinks a lot; ABS shrinks moderately).
· Desktop Tip: Your mold designer must apply the correct shrinkage factor provided by the material manufacturer. This is factored into the CAD model before the mold is machined.
9. Tolerances: Know What's Critical
Not every dimension on a part needs to be held to micron-level tolerances.
· Why it matters: Holding unnecessarily tight tolerances exponentially increases mold cost and complexity.
· Desktop Tip: Identify the critical "A" dimensions (e.g., parts that interface with others) and design the mold to hold those tightly. Allow non-critical dimensions to have more relaxed tolerances. This simplifies mold making and reduces cost.
10. Choose the Right Mold Material
For desktop machines, aluminum is often the perfect choice.
· Why it matters: Steel molds are incredibly durable but expensive and slow to machine. For prototyping and low-volume production (1,000 - 10,000 parts), aluminum offers excellent thermal conductivity and is much faster and cheaper to machine.
· Desktop Tip: Use 7075 or 6061 aluminum. It's soft enough for rapid machining yet hard enough for thousands of cycles on a desktop machine, especially when using non-abrasive plastics like ABS, PP, or TPE.
Conclusion: Design for the Machine
The biggest mistake is designing a mold for a 500-ton industrial press and then trying to run it on a 5-ton desktop machine. Success in desktop injection molding comes from respecting the machine's limits and leveraging its strengths: speed, flexibility, and accessibility.
By mastering these ten critical design points, you don't just design a mold; you design a process for success. You'll save countless hours, avoid wasting thousands of dollars on scrap and rework, and unlock the full potential of bringing plastic manufacturing in-house. Invest time in perfecting your mold design—it's the cheapest insurance policy you can buy against a seven-figure loss.
Ready to start your next project? Model it, draft it, and design your mold with these rules in mind. Your bottom line will thank you.
