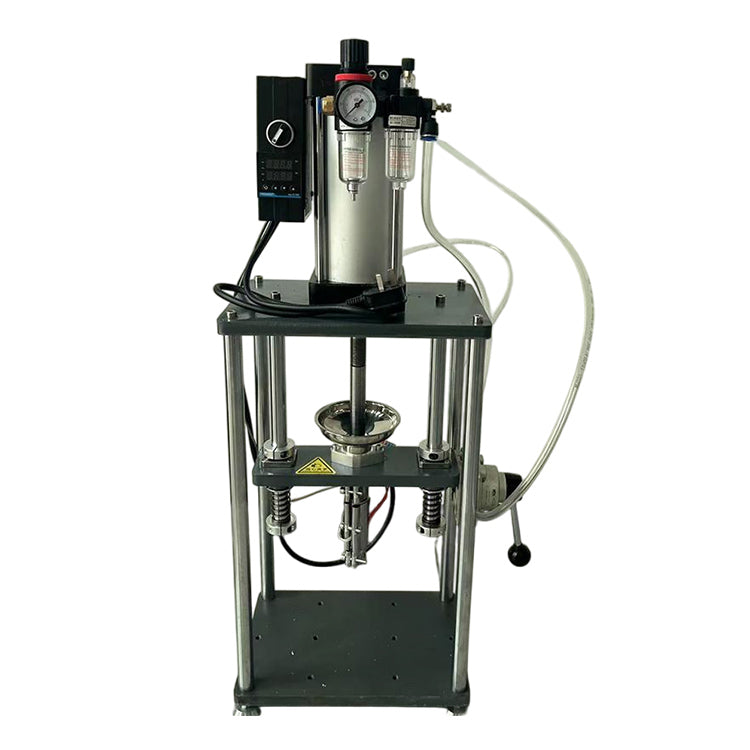

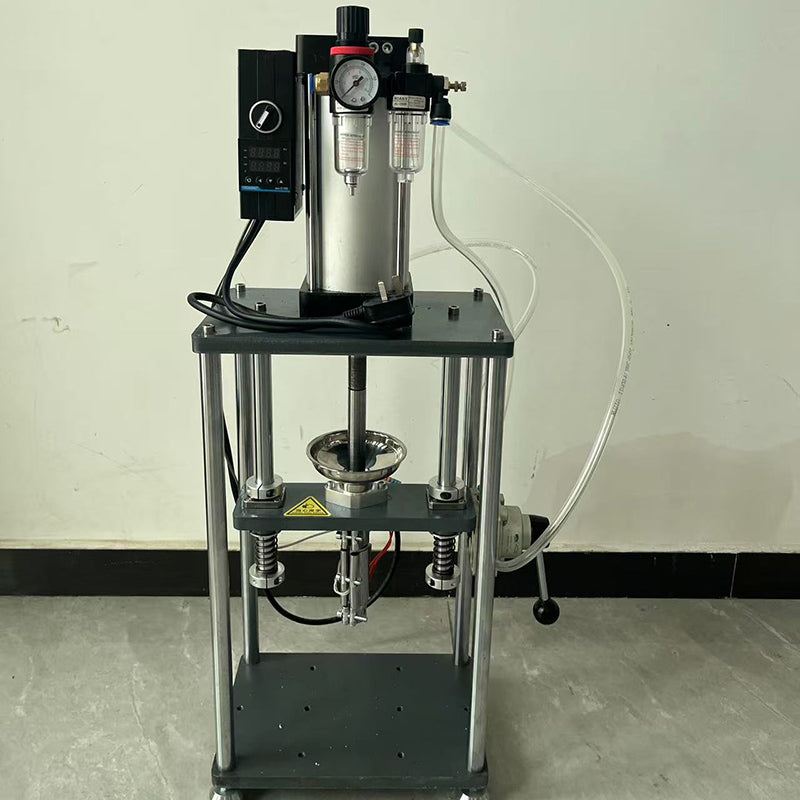

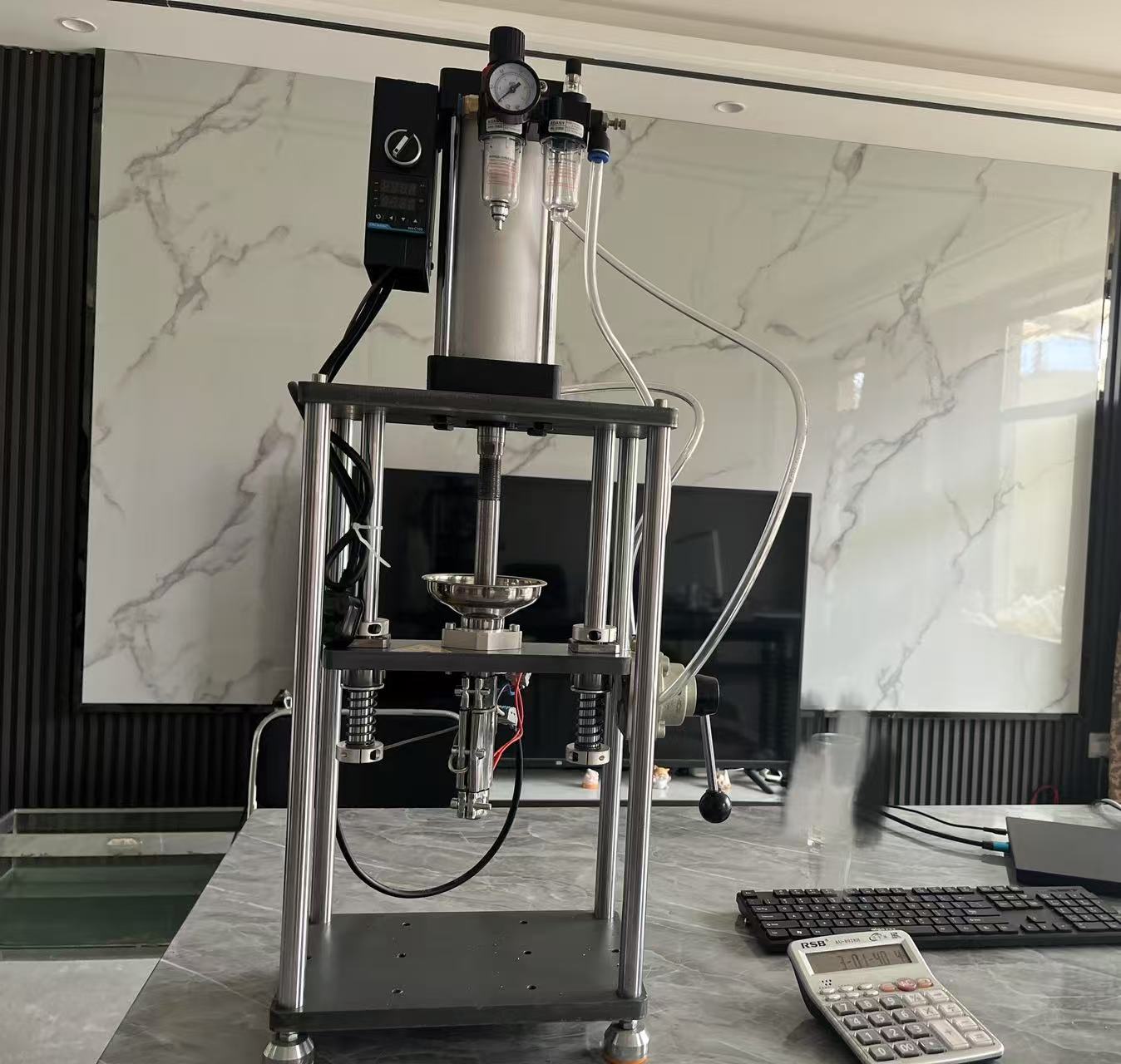

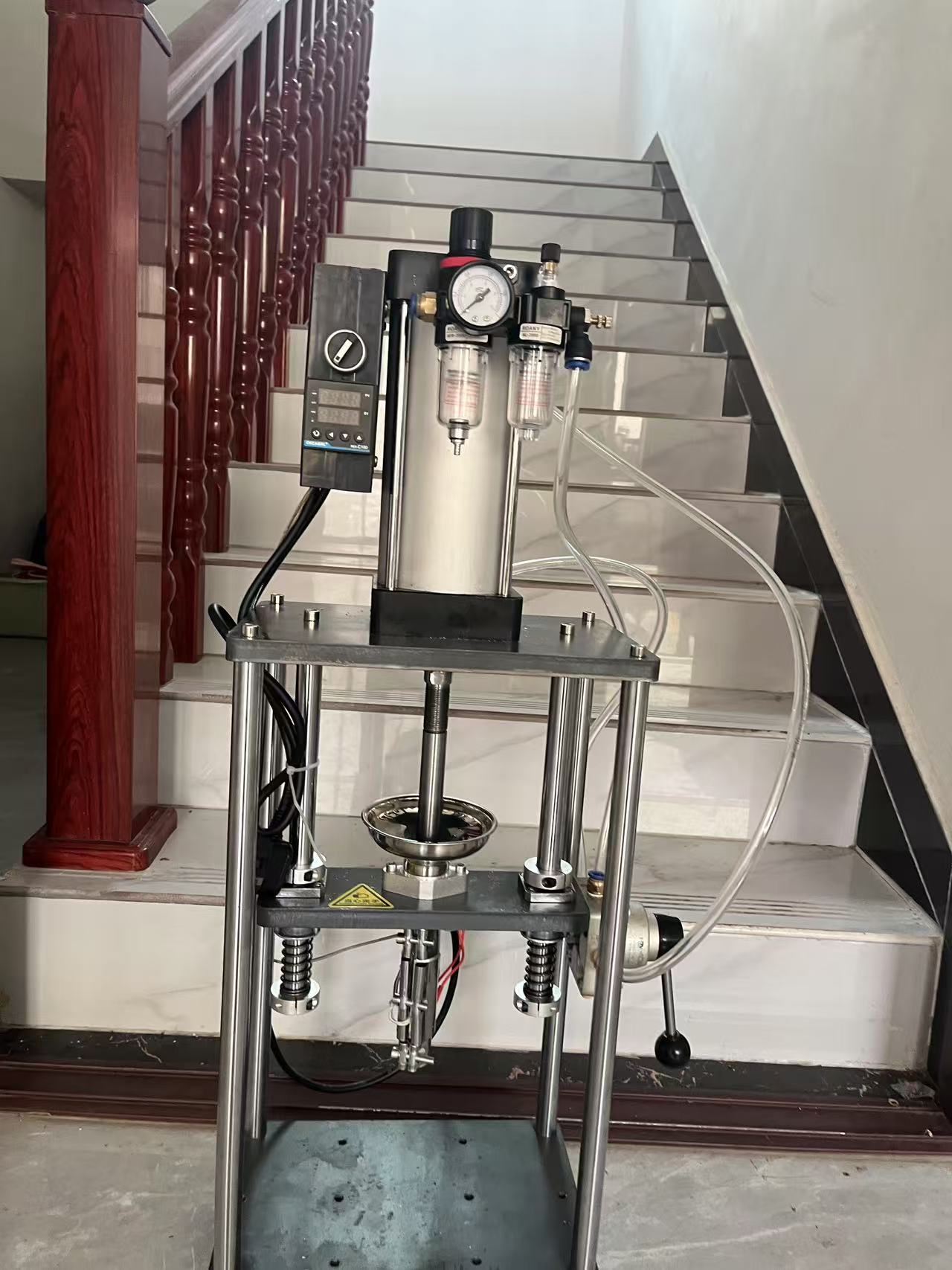

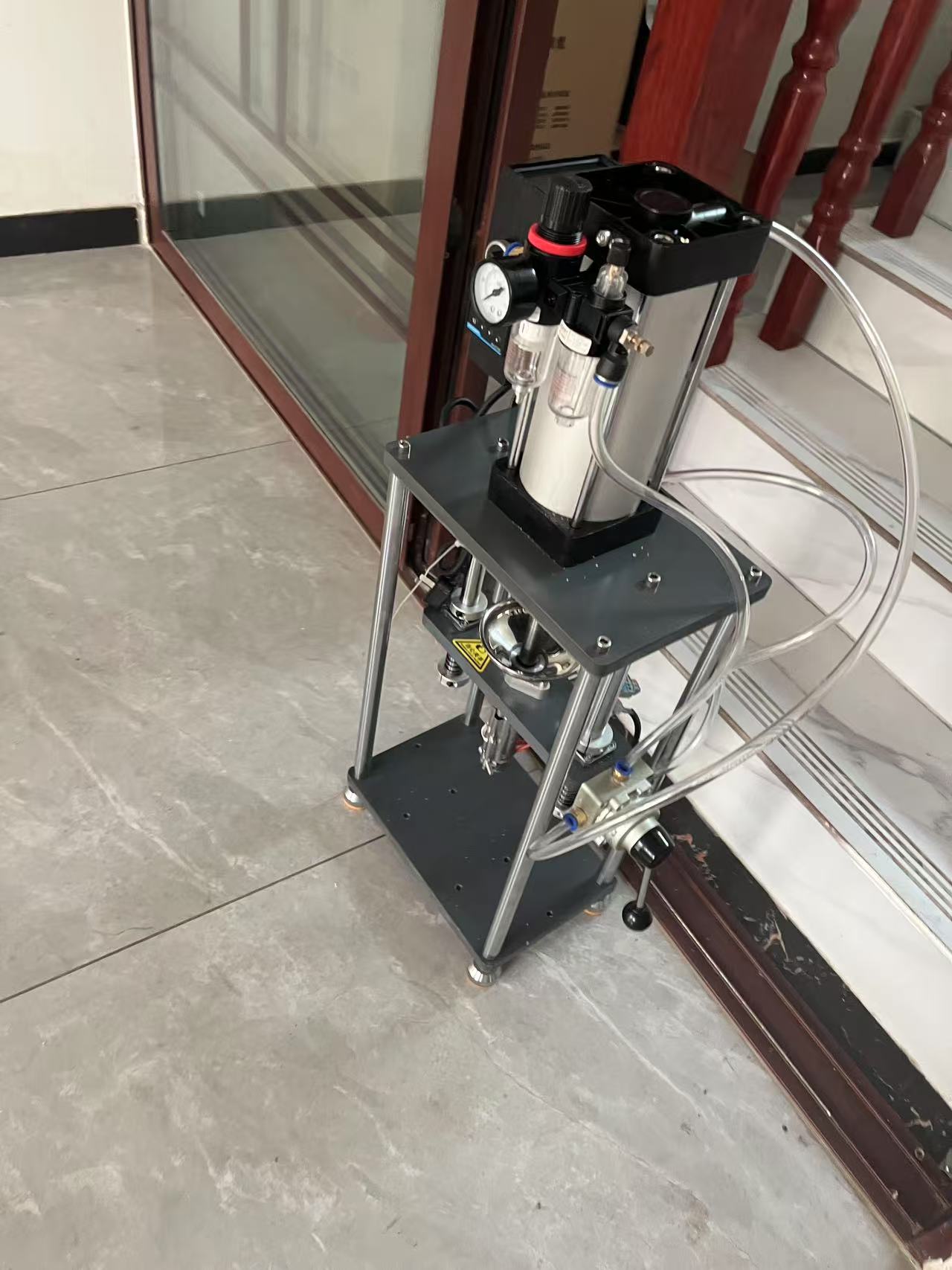

KCP03 Desktop Injection Molding Machine

This is a desktop mini injection molding machine, with pressure provided by an air compressor. The maximum weight of the product it can produce is 50 grams.

Specification

Desktop injection molding machine
Type:Pneumatic
Dimension:350*210*900mm
Voltage: 110V/220V
Material:Stainless steel and aluminium alloy
Power source:230v, 50hz, 10A
Pressure:800kg
Heating power:900W
Temperature range: adjustable from 0 to 350 degrees
Injection capacity:50g
Injection Nozzle Inner Diameter:3mm
Application: PP,ABS,PVC,PC,PMMA,POM,HDPE,TPU etc market materials
Air compressor pressure：60L
